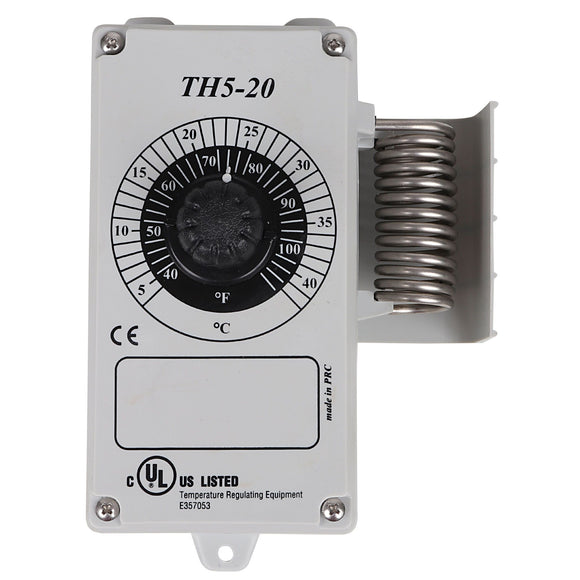

Thermostat 120/240V 16 Amps
Used for precise control of heating, ventilation and cooling systems. Each one is built with a stainless steel sensing coil mounted to a weather-proof ABS plastic enclosure. The adjustable knob pointer disc allows the thermostat to be recalibrated.
This thermostat is resistant to moisture and gases found in corrosive agricultural buildings. Great for livestock confinement buildings, greenhouses, warehouses and industrial buildings
Features:
Stainless steel sensing coil
Accurate
ABS plastic weather-proof enclosure
2 conduit or cable gland openings maximum
Gasket for lid and sealed spiral entries
Single pole, double throw switch
Screw terminals
Knob can be temperature scale calibrated and is unlocked with a small Phillips screwdriver
Specifications:
40° F to 105° F temp range
120/240V AC, 50/60 Hz. Full load. 16 A (resistive)
Differential: 2, 4° F
Model #: TH-5-20
Dimensions: 6 1/2" H (with ears) x 3" D (with knob) x 4 1/2" W (with coil)
Weight: 1 lb
